Wobkey Rainy 75 Acrylic Wireless
| Wireless Connection |
How to switch to |
Signal Lights |
Device |
| Wired |
Function + Tab toggles between dongle (Green) and BT (Blue) and Wired (No Light) when USB wire IS connected. For firmware update. |
No light under F4 Key bit rest of keyboard lights up with rotating rainbow |
NA |
| 2.4 GHZ Dongle |
Function + Tab toggles between dongle (Green) and BT (Blue) when no USB wire is connected. |
Green Indicator under F4 Key for 3 seconds |
Keep white wobkey dongle, For now connected in Renior 4700g Black TV Computer. Needed for VIA as that does not work over bluetooth. |
| Bluetooth F1 |
Function + Tab toggles between dongle (Green) and BT (Blue) when no USB wire is connected. Then if Not Blue under F1 press Function + F1. |
Blue Indicator under F1 Key for 3 seconds |
Veermeer - Main Desktop |
| Bluetooth F2 |
Function + Tab toggles between dongle (Green) and BT (Blue) when no USB wire is connected. Then if Not Blue under F2 press Function + F2. |
Blue Indicator under F2 Key for 3 seconds |
Renior 4700g Black TV Computer |
| Bluetooth F3 |
Function + Tab toggles between dongle (Green) and BT (Blue) when no USB wire is connected. Then if Not Blue under F3 press Function + F3. |
Blue Indicator under F3 Key for 3 seconds |
Work Laptop |
Bluetooth Device Assigments
- F1 -> Veermeer - Main Desktop
- F2 -> Renior 4700g Black TV Computer
- F3 -> Work Laptop
Wireless Mode
The only way this keyboard will do anything without being plugged directly into a computer is by turning on the wireless mode.
Remove the Caps Lock Keycap to expose the wireless on/off switch. I will only use this thing in wireless mode.
Once I did this the RGB lights started doing stuff.

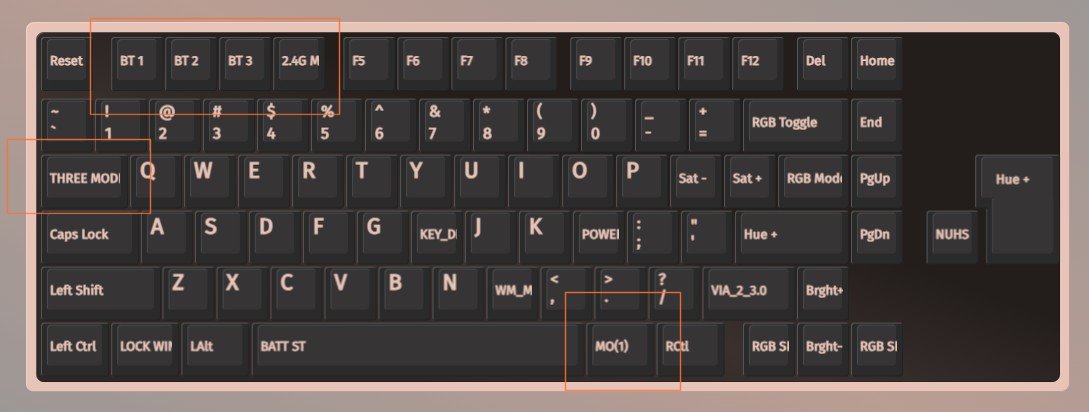

Switch Connection Modes
Function + Tab sitches from Wired (ESC Lights up), F1 - F3 Lights up for what bluetooth conneciton you are on, F4 lights up green to inicate we are using 2.4 GHZ dongle connection.
Bluetooth Pairing
Long Press Function Key + F1/F2/F3 for 3 seconds to assign device. I think we need to be in blue tooth mode for this to work (ie Function + Tab Lights up F1-F3 not F4)
2.4GHZ Pairing
It says we can pair to dongle by long pressing Function + F4. Seems to just work for me without needing to pair. Might be needed if switching dongles? Note VIA does not work over bluetooth but it does work over 2.4 GHZ wireless.
